Advanced Light Therapy for the Scalp

Targeted red and near-infrared photobiomodulation designed to support healthier-looking, fuller-looking hair and a more vital scalp environment.

Hair wellness begins at the scalp.

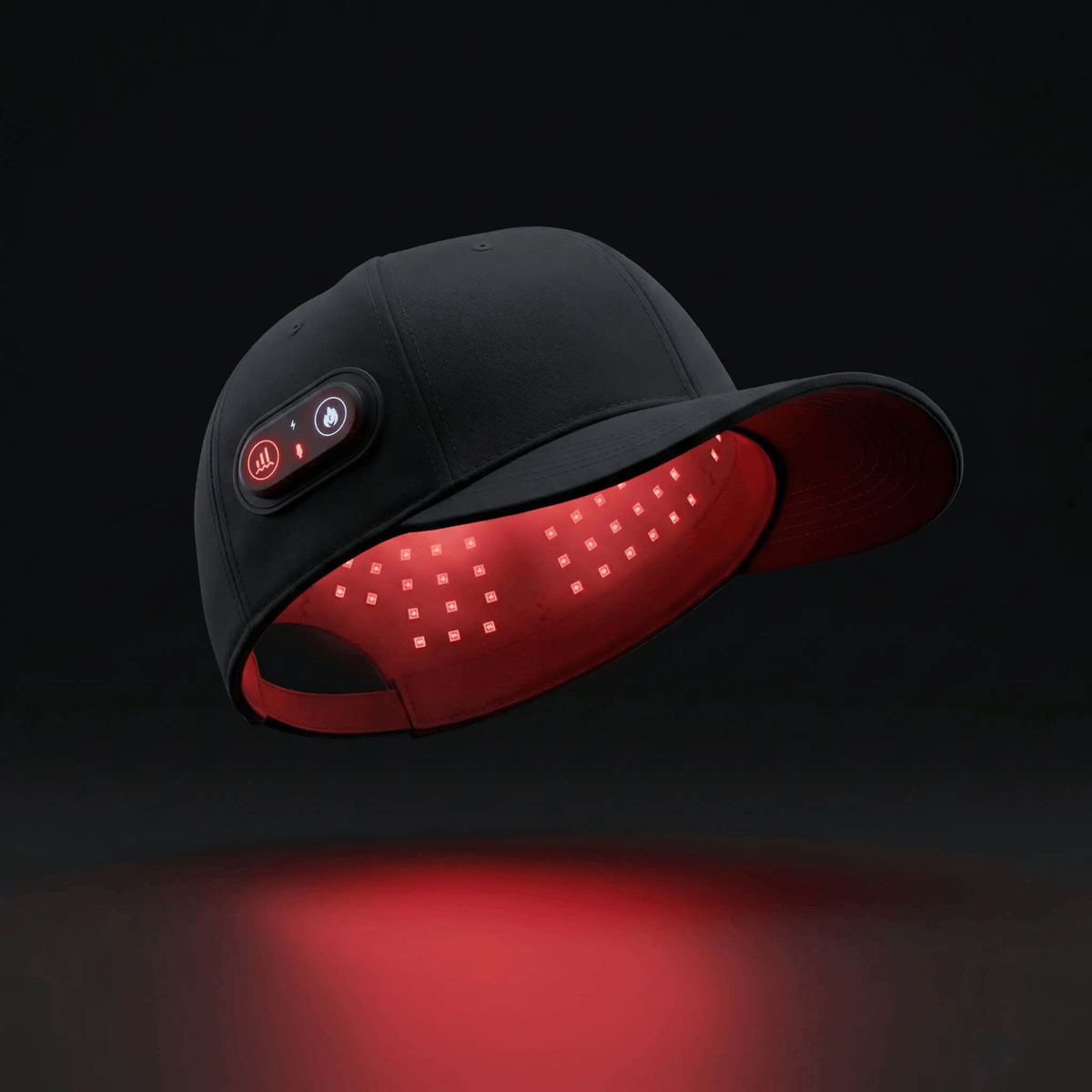

The RegenOMedix™ Red + NIR Hair Cap brings targeted photobiomodulation directly to the scalp through a wearable, cordless system combining 660 nm red light and 850 nm near-infrared light.

Rather than relying on a single wavelength or widely spaced points of light, the cap uses 136 triple-chip LED modules containing 408 individual light-emitting diodes, creating broad light coverage across the scalp. The manufacturer specifies an irradiance of up to 45 mW/cm², giving the system meaningful light output within a simple 20-minute treatment ritual.

Two Wavelengths. Two Levels of Support.

660 nm Red Light

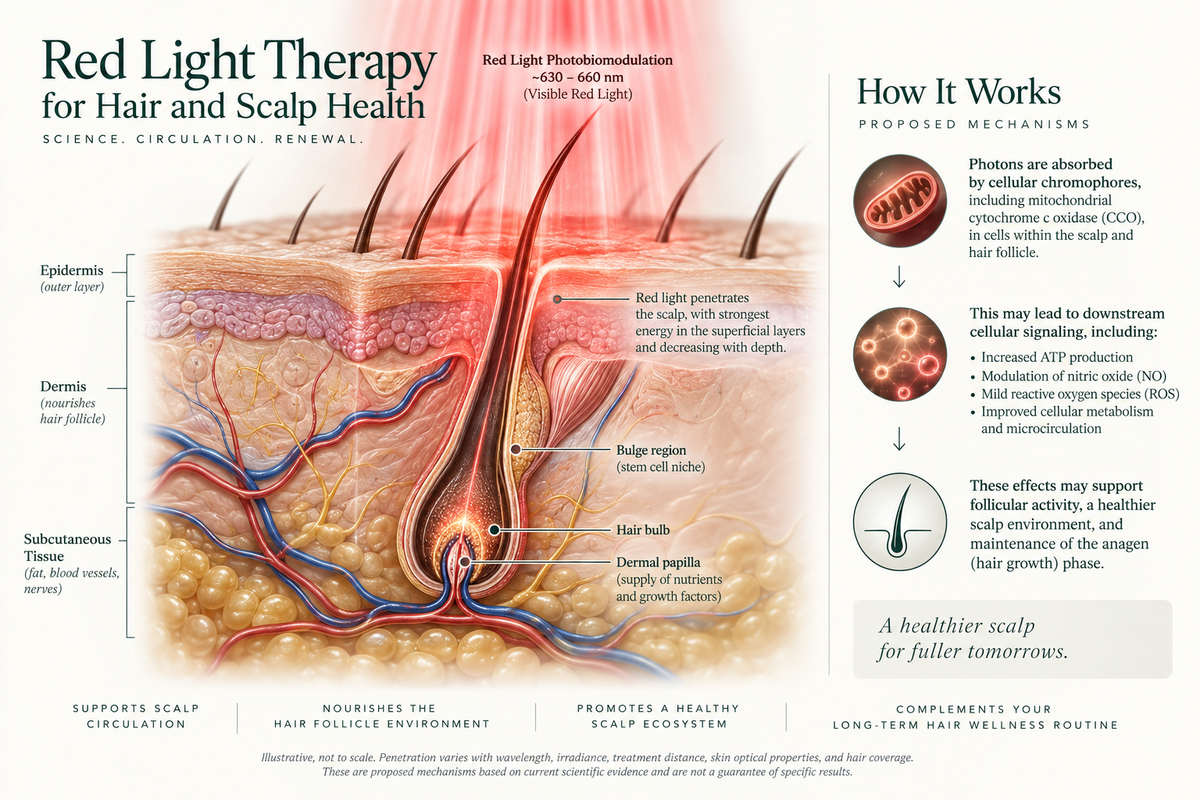

Visible red light is commonly used in photobiomodulation because of its interaction with superficial scalp tissue. It may help support cellular energy production, circulation within the scalp environment, and normal follicular activity.

850 nm Near-Infrared Light
Near-infrared light is invisible to the eye and penetrates more deeply than visible red light. Used alongside red light, it broadens the depth of photobiomodulation and provides additional support for the tissues surrounding the follicle.

Together, the two wavelengths create a more comprehensive approach than red light alone.

Designed for Consistent Scalp Coverage

Light therapy is not simply about how many LEDs a device contains. Wavelength, irradiance, treatment distance, exposure time, and distribution across the treatment area all influence the delivered light dose.

The RegenOMedix cap uses 136 triple-chip LED modules — 408 individual LED chips in total — positioned throughout the cap to distribute light across the scalp. This dense arrangement is intended to minimize large gaps between treatment points and provide more uniform exposure.

45 mW/cm² Stated Irradiance

The manufacturer specifies an irradiance of approximately 45 mW/cm².

For Proaging Technology, this is an important specification because LED count by itself tells us relatively little about the performance of a light-therapy device. Irradiance helps describe how much light energy actually reaches the treatment area.

Higher irradiance is not automatically better. The wavelength, total treatment time, treatment distance, uniformity and resulting dose all matter. But having a stated irradiance gives us a far more meaningful performance metric than simply advertising hundreds of LEDs.

Four Treatment Modes

The cap provides several ways to deliver the light:

Continuous Mode
Steady red and near-infrared light throughout the treatment.

10 Hz Pulse Mode
Light delivered in a rhythmic 10-cycle-per-second pattern.

40 Hz Pulse Mode
A faster pulsed-light treatment at 40 cycles per second.

Breathing-Light Mode
Gradually modulated light intensity for a gentler treatment experience.

Three adjustable intensity levels allow the session to be tailored for comfort and preference.

Cordless by Design

A built-in 2500 mAh rechargeable battery eliminates the need to remain connected to a wall outlet during use.

That matters with a treatment designed around consistency: the easier a device is to incorporate into everyday life, the more likely it is to actually be used.

Wear it while reading, working at your desk, traveling, or relaxing at home.

A Simple 20-Minute Ritual

The recommended protocol supplied for the device is approximately:

20 minutes per session
Daily use during the initial 3–6 month period
2–3 sessions per week for maintenance

Hair cycles move slowly, so light therapy should be considered a long-term routine rather than an immediate cosmetic treatment.

Technical Specifications

• Light technology: Red + near-infrared photobiomodulation
• Red wavelength: 660 nm
• Near-infrared wavelength: 850 nm
• LED configuration: 136 triple-chip LED modules
• Total individual LED chips: 408
• Stated irradiance: 45 mW/cm²
• Modes: Continuous, 10 Hz pulse, 40 Hz pulse, breathing-light
• Intensity: 3 adjustable levels
• Battery: Rechargeable 2500 mAh
• Treatment time: 20 minutes
• Fit: Approximately 22.25–27.5 in / 56.5–69.8 cm head circumference
• EMF: Manufacturer states zero EMF output
• Warranty: Two-year manufacturer warranty
• Regulatory status: Manufacturer/distributor represents the device as FDA 510(k)-cleared for over-the-counter use; PT should confirm the specific clearance before publication.

The Proaging Perspective

Hair-light devices are becoming increasingly common, and this is an area where more LEDs does not necessarily mean a better device.

What interests us about the RegenOMedix system is the combination of wavelength selection, light density, stated irradiance, treatment coverage and usability.

The pairing of 660 nm red light with 850 nm near-infrared light is particularly compelling. Red light addresses the more superficial scalp environment while near-infrared light extends photobiomodulation deeper into the tissue. Rather than treating these as competing technologies, this system uses them together.

We also appreciate that RegenOMedix provides an actual irradiance specification. A device can advertise hundreds—or even thousands—of LEDs, but without understanding wavelength, energy output, treatment distance and dose, LED count alone does not tell us how meaningful the treatment may be.

The dense triple-chip configuration, cordless design and automatic 20-minute treatment format also make this a device designed for something that matters enormously in hair care:

Consistency.

Hair growth does not happen overnight. Any technology intended to support the hair cycle has to be realistic enough to become part of a long-term routine.

Our view: this is a thoughtfully specified photobiomodulation system that moves beyond the basic “red-light hat” category toward a more purposeful scalp-treatment device.

Two wavelengths. Meaningful output. Full-scalp coverage. Technology designed for the long game.

Medical Device Disclaimer
This product is a Class II medical device and is intended to be used only in accordance with the manufacturer’s instructions, labeling, and FDA-cleared indications for use, where applicable. Information provided by Proaging Technology is for general educational and informational purposes only and is not intended as medical advice or as a substitute for diagnosis, treatment, or care provided by a qualified healthcare professional. No representation is made that this device will diagnose, cure, heal, or prevent any disease or medical condition beyond any specific indications authorized or cleared by the U.S. Food and Drug Administration. Individual results may vary. Consult a qualified healthcare professional regarding any medical condition, medications, contraindications, or concerns before using the device.
